Most Advanced A/V Jukebox in the market

PHD-HM5, The Most Advanced HD Media Player!

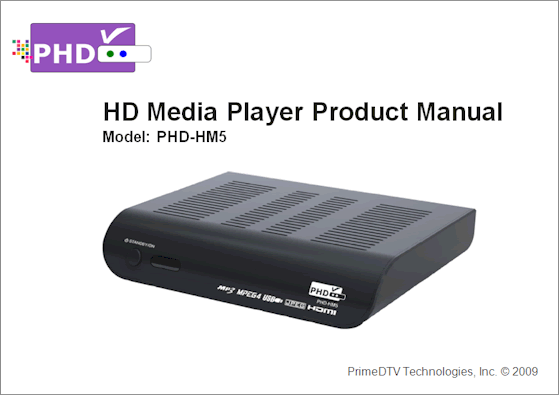

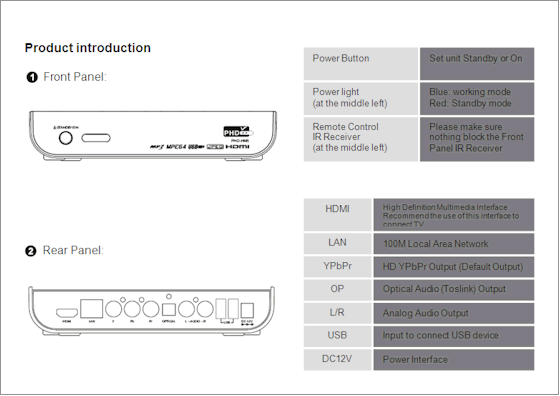

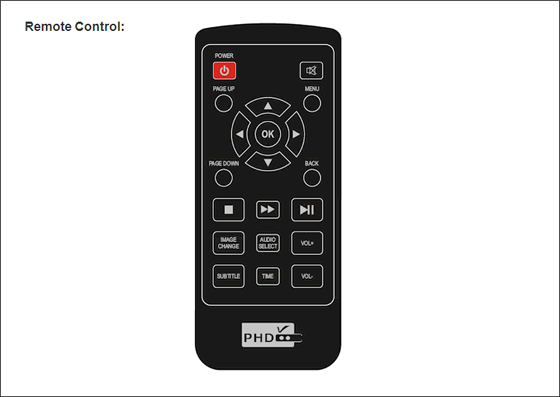

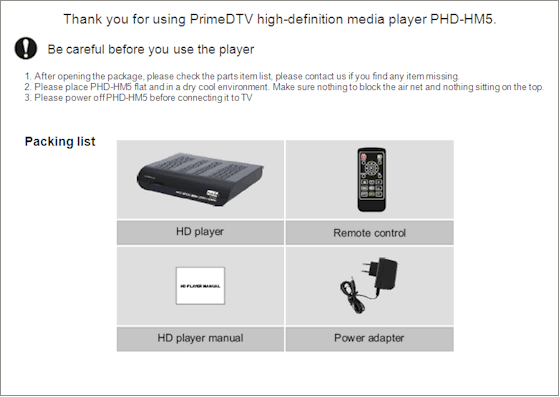

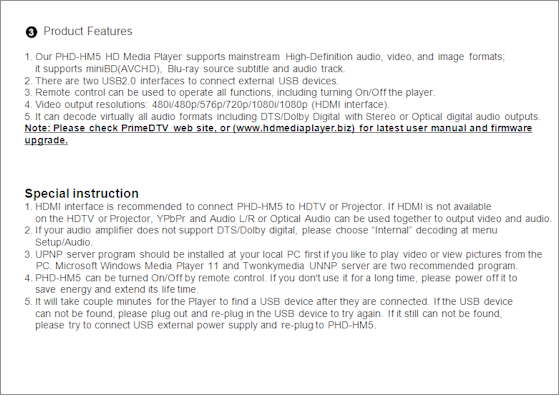

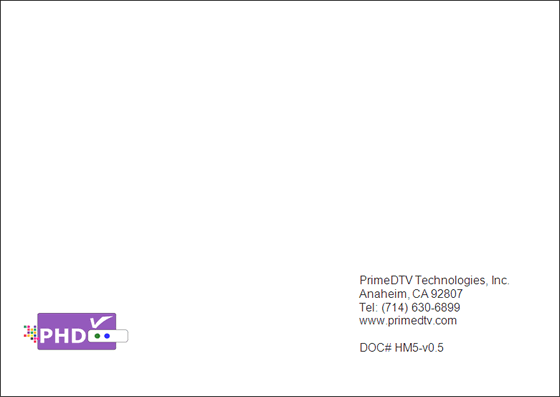

Product Manual:

l PHD-HM5 Product Manual (short version v0.5A)

l Quick Viewing:

Firmware Downloads:

[ Top Page]

l Download Instructions:

1. Make sure the USB Flash stick is larger than 128MB size.
2. Copy "upgrade.dat" and "flash.bin_x.x.x" both files into root directory of USB Flash stick.
3. Insert USB Flash stick to one USB port of PHD-HM5 and power on.

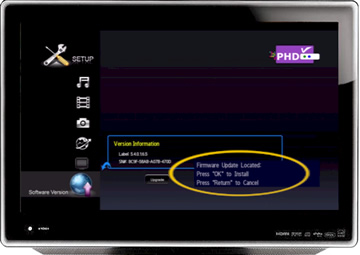

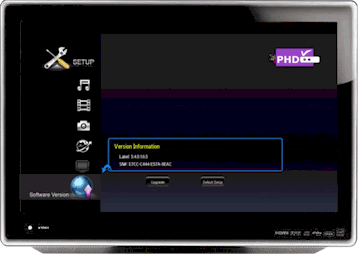

	4.	Select "SETUP" menu and navigate to "Software Version" section. Select "Upgrade" to upgrade firmware.
	5.	After detecting correct firmware, press "OK" key on remote control to confirm and proceed the upgrade.
	6.	Depending on "flash.bin_x.x.x" file size, it usually takes about several minutes to complete the firmware uploading.
	7.	PHD-HM5 will auto re-boot after completion.

l Firmware Version:

firmware(upgrade.dat_1.8.0) - 12/17/09

		- implement play beginning and from
		previous view point options after stop.

	firmware (flash.bin_1.7.0) - 11/09/2009
		- implement soft FF function.

	firmware (flash.bin_1.6.5) - 11/01/2009
		- improve AAC decoding.
